Vacuum switch hose routing

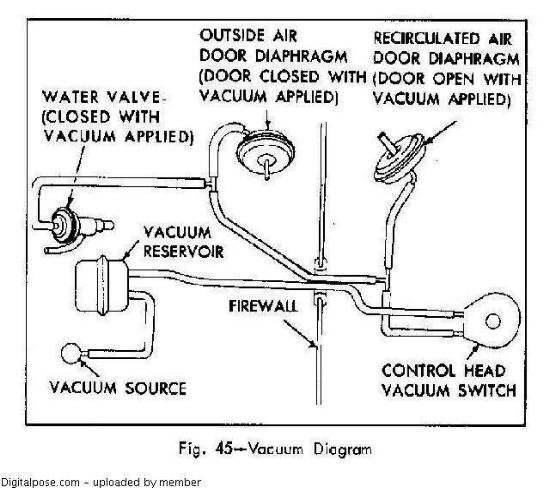

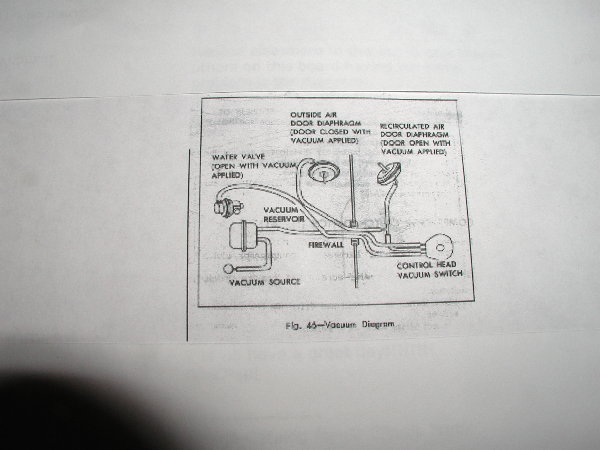

There were 2 styles used on the 67-72 Chevy trucks with factory air. The early one is on the left, the later on the right.



2port 3port
